How to pair the electric water heater controller with the Hilo hub?

To pair the water heater controller, please follow these instructions.

1. Open the Hilo application, go to the devices page.
2. Tap the + in the upper-right-hand corner.
3. Tap Add a Device.
4. Tap Thermostat, in-wall switch, etc.
5. Tap on Scan the Data Matrix code.
6. Point your phone’s camera at the code located on the controller’s side.
7. Tap on Continue.
8. Press and hold the controller button for approximately 3 seconds (see figure 1). The center indicator light will turn from yellow to flashing blue and then to solid blue.
9. In the app, tap on Close when you see The device(s) have been added! The devices page will be displayed again.
10. Wait about 60 seconds, or tap on ⟳ to refresh the devices page, until the controller’s tile appears in the app.
11. Switch off the controller from the app. The charge indicator light will turn off.
12. Turn the controller back on by pressing the button. The charge indicator light will turn red and the tile’s status in the app will reflect the action a few seconds later.
13. If you want to rename the controller tile in the app, consult an article on our web site by clicking here.

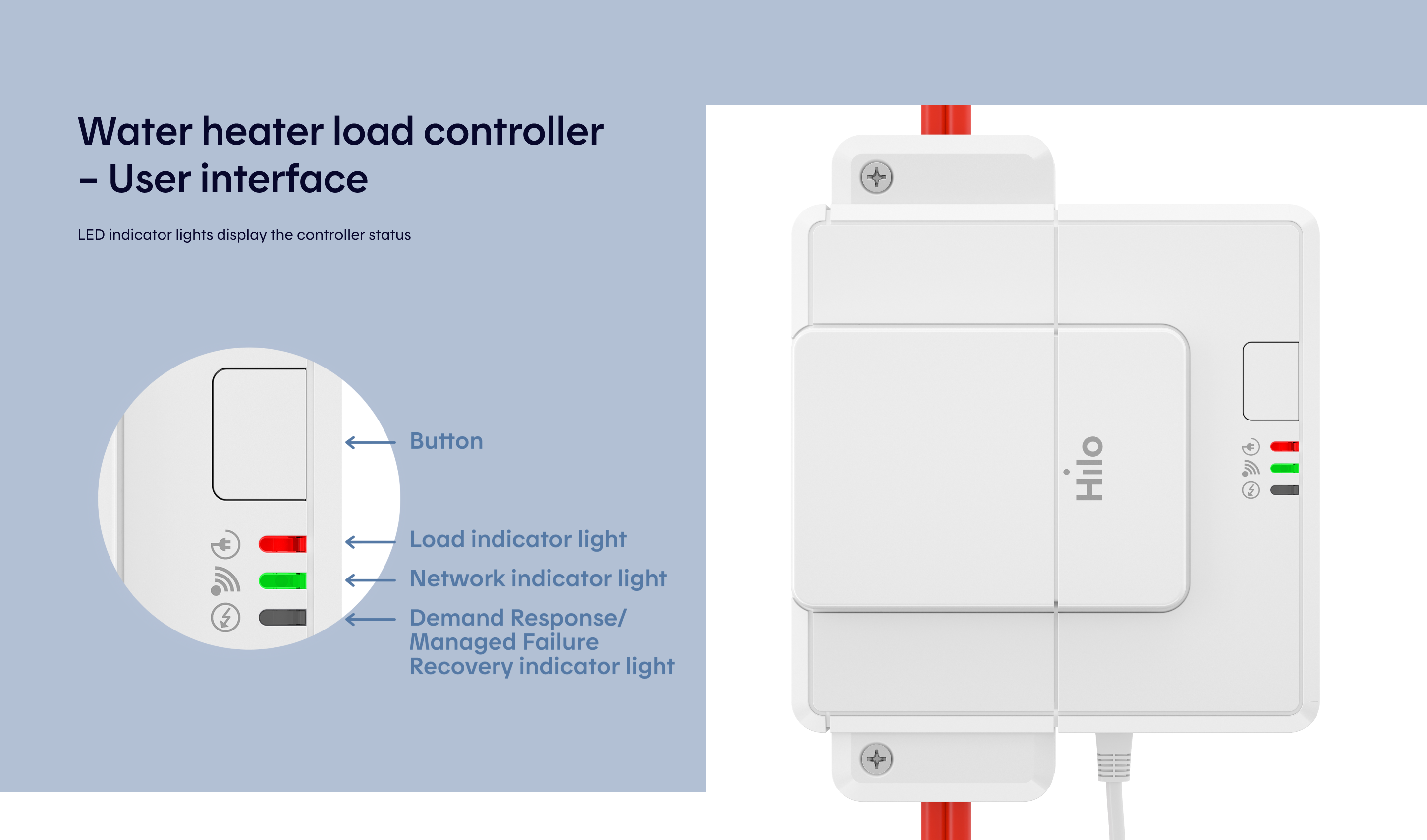

Figure 1
